GJPFJV GJFJHV Indoor Branch Optical Cable

GJPFJV GJFJHV Indoor Branch Optical Cable Cable Description:

·Each sub-cable contains aramid reinforced fiber, which has good flexibility, does not contain grease, is hygienic and clean, and is easy to construct and connect. ​

·The optical fiber in the sub-cable adopts a tight sleeve design and has independent reinforcing elements and sheaths to prevent damage caused by environmental and mechanical stress. ​

·Low-smoke, low-halogen flame-retardant sheath, anti-flame-proof and self-extinguishing, suitable for use in indoor environments such as computer rooms, cable shafts and in-wall wiring.

·Low-smoke, halogen-free, flame-retardant polyolefin sheath, UV-resistant, waterproof and mildew-proof, and environmental stress cracking resistant; it also has no acidic gas release and does not corrode equipment in the computer room. It is suitable for indoor and outdoor use or indoor environments that require a high flame-retardant level (such as In-ceiling wiring, open wiring, etc.).

Contact Us
  • GJPFJV GJFJHV Indoor Branch Optical Cable
  • GJPFJV GJFJHV Indoor Branch Optical Cable
Product description

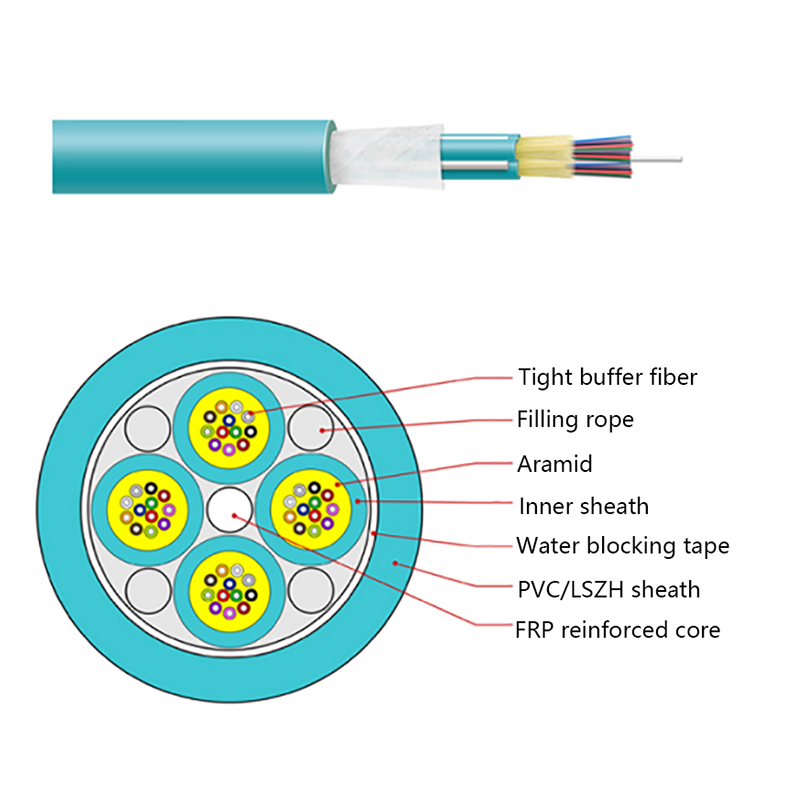

The GJPFJV Indoor Branch Optical Cable structure is based on tight-buffered optical fiber as the basic unit. The multi-core bundle cable as a sub-unit is twisted with FRP into a circle and then extruded with PVC (or LSZH) sheath to form a cable. In the gap position of the cable and the cable core and sheath In between, dry water-blocking materials are placed.

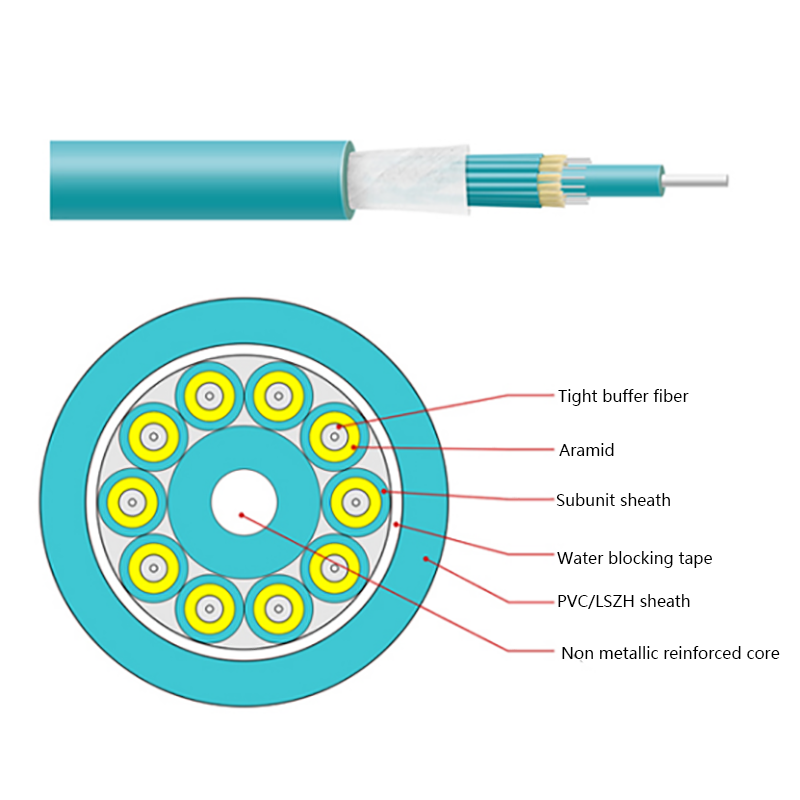

The structure of the GJFJHV Indoor Branch Optical Cable is to place aramid reinforcement elements on the surface of the tight-buffered optical fiber and then extrude the sheath to form a sub-unit. The sub-unit is twisted into a circle with the non-metal reinforcement FRP (and possibly a cushion), and the cable core and A layer of dry water-blocking tape is wrapped between the shields, and finally a PVC (or LSZH) sheath is extruded into the cable. Suitable for floor connection and easy maintenance.

Indoor Branch Optical Cable Applications

·Indoor horizontal wiring, vertical wiring in buildings, LAN network. ​

·The standard fiber core can be directly installed with connectors for connecting to equipment. ​

·Used as the tail cable of the backbone network, it can be directly connected from outdoors to indoors, eliminating the need for junction boxes, isolating lightning and improving system reliability. ​

Indoor branch optical cable Standards

·GJPFJV and GJFJHV meet YD/T1258.4-2009, ICEA-596, GR-409 and IEC794 standards; meet UL certification OFNR.

structure parameters

GJFJHV structure parameters

Fiber Count

Subunit Diameter     mm

Cable Diameter     mm

Cable Weight     Kg/km

ensile Strength    Long/Short Term       N

Crush Resistance    Long/Short Term     N/100m

Bending Radius   Static/Dynamic       mm

2 core

2

7.0±0.5

45

500/1000

400/800

30D/15D

4 core

2

7.0±0.5

45

500/1000

400/800

30D/15D

6 core

2

8.3±0.5

62

500/1000

400/800

30D/15D

8 core

2

9.4±0.5

85

500/1000

400/800

30D/15D

10 core

2

10.7±0.5

109

500/1000

400/800

30D/15D

12 core

2

12.2±0.5

140

500/1000

400/800

30D/15D

GJPFJV structure parameters

Fiber Count

Cable Diameter   mm

Cable Weight   Kg/km

Tensile Strength Long/Short Term   N

Crush Resistance Long/Short Term   N/100m

Bending Radius Static/Dynamic  mm

24 core

13.8±0.5

70

500/1300

300/1000

30D/15D

48 core

18.0±0.5

150

500/1300

300/1000

30D/15D

96 core

25.0±0.5

340

500/1300

300/1000

30D/15D

120 core

31.0±1mm

530

500/1300

300/1000

30D/15D
