GJFJV Indoor Single Core Jumper Wire Optical Cable Wholesale

Home / Product / Indoor Optical Cable / GJFJV Indoor Single Core Jumper Wire Optical Cable

GJFJV Indoor Single Core Jumper Wire Optical Cable

GJFJV Indoor Single Core Jumper Wire Optical Cable Cable Description:

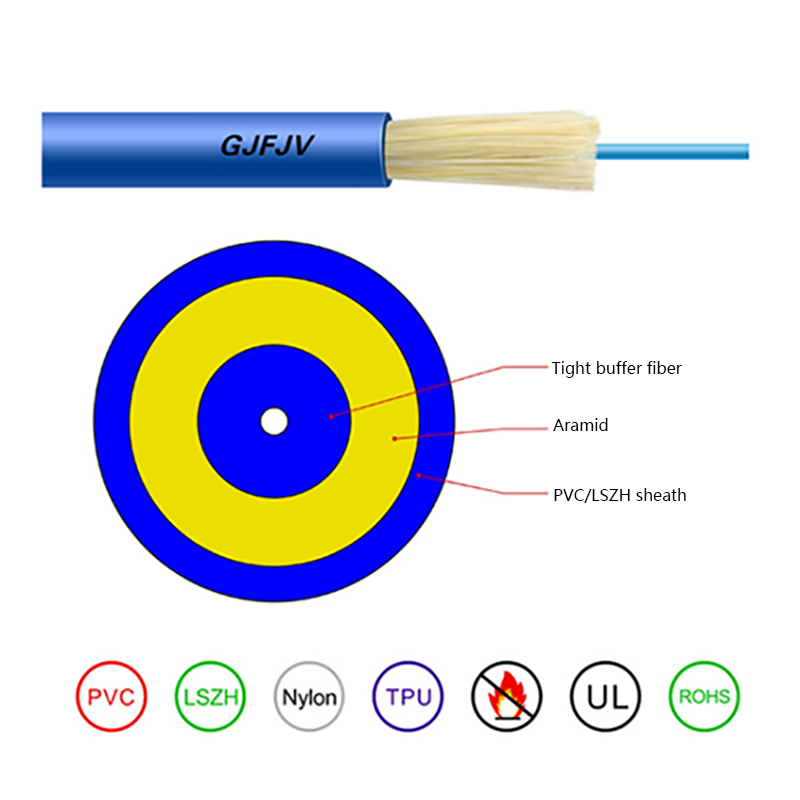

The GJFJV Indoor Single Core Jumper Wire Optical Cable structure is to evenly place multiple strands of aramid fiber for reinforcement on the outside of the tight-buffered optical fiber of ф900μm or ф600μm, and then extrusion of PVC (or LSZH) outer sheath.

Contact Us
  • GJFJV Indoor Single Core Jumper Wire Optical Cable
Product description
Features

·Tight-buffered optical fiber has uniform outer diameter and good peelability

·Good flame retardant properties

·Stable high and low temperature characteristics

·Good geometric size consistency of optical fiber


Applications

·data communication

·Optical connector production

·Laying method: along wall, roof, mezzanine, conduit, wire trough

·Used in situations without strict waterproofing requirements

·Patch cords, pigtails and indoor wiring

·Laying method: along wall, roof, mezzanine, conduit, wire trough


Product Standards

·GJFJV Indoor Single Core Jumper Wire Optical Cable refers to YD/T1258.2-2003, ICEA-596, GR-409, IEC794 and other standards; it meets the requirements of UL certification OFNR and OFNP.



structure parameters

Optical cable model

Cable Diameter Cable Weight Tight Sleeve Fiber Diameter
SXC-III 2.8±0.2mm 6.9kg/km 900±50μm
SXC-II 2.0±0.2mm 5.9kg/km 900±50μm
SXC-I 1.6±0.2mm 4.0kg/km 600±50μm

Mechanical behavior

Allow For Tensile Strength Allow Squash Force Bending Radius
long-term short-term long-term short-term trends static state
80N 150N 100N/100mm 500N/100mm 20XD 10XD
60 120 100N/100mm 500N/100mm 20XD 10XD
50 100 100N/100mm 500N/100mm 20XD 10XD



Optical properties



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

--





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth

（Class A）

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Optical Cable Cutoff Wavelength



≤1260nm

≤1480nm







Environmental characteristics

Transportation Temperature Storage Temperature Installation Temperature Operating Temperature
-20℃～﹢60℃ -20℃～﹢60℃ -5℃～﹢50℃ -20℃～﹢60℃
