GJYXCH FTTH Fiber Drop Cable

FTTH Fiber Drop Cable Cable Description:

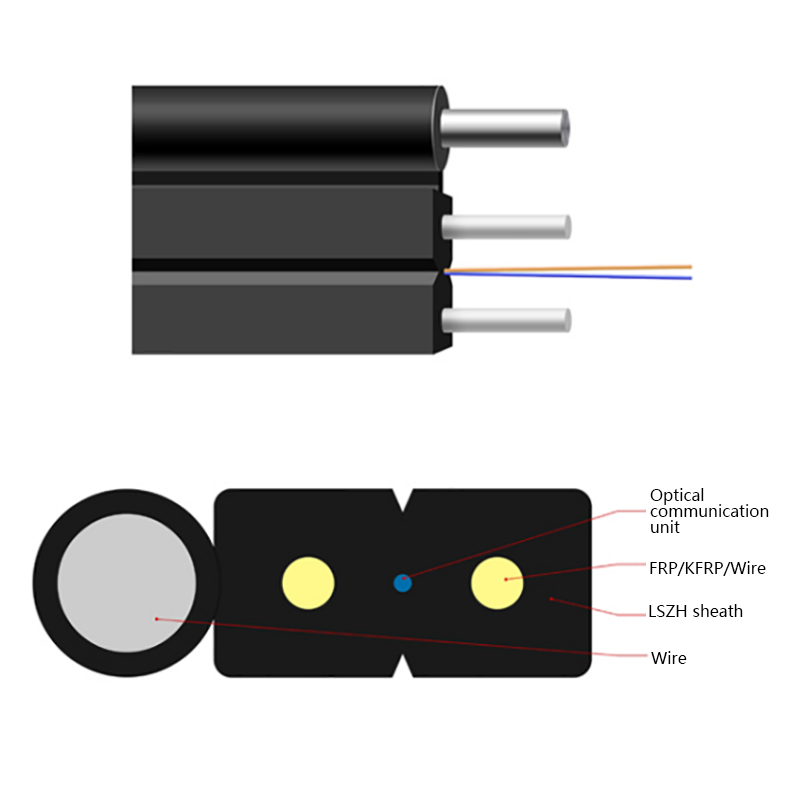

FTTH Fiber Drop Cable places optical fiber in the center. Two parallel reinforcements (FRP, steel wire) are placed on both sides, and finally, a black or colored low-smoke halogen-free flame retardant sheath is extruded into a cable.

  • GJYXCH FTTH Fiber Drop Cable
Product description
Features

·Special bending-resistant optical fiber provides greater bandwidth and enhances network transmission characteristics. ​

·Two parallel FRP or steel wires have good compression resistance and protect the optical fiber.

·Optical cable has simple structure, light weight and strong practicability. ​

·A single steel wire or steel strand is attached with reinforcing elements to make the optical cable have good tensile properties. ​

·Unique groove design, easy to peel off, easy to connect, simplifies installation and maintenance.

·Low smoke halogen-free flame retardant sheath, environmentally friendly.

Product Standards

·FTTH Fiber Drop Cable Comply with standards: YD/T 1997-2009. IEC60794-1-2

structure parameters

FTTH Fiber Drop Cable Structural Parameters

Fiber Count

Cable Diameter mm

Cable Weight Kg/km

Cable Weight Kg/km

Crush Resistance
Long/Short Term N/100m

Bending Radius Static/Dynamic mm

1

2.0×5.0

20

100/200

1000/2200

15D/30D

2

2.0×5.0

20

100/200

1000/2200

15D/30D

4

2.0×5.0

20

100/200

1000/2200

15D/30D

6

2.0×5.5

21

100/200

1000/2200

15D/30D

8

2.0×6.0

23

100/200

1000/2200

15D/30D

12

2.0×7.0

25

100/200

1000/2200

15D/30D
