GJXH FTTH Indoor Optical Cable

Indoor Optical Cable Cable Description:

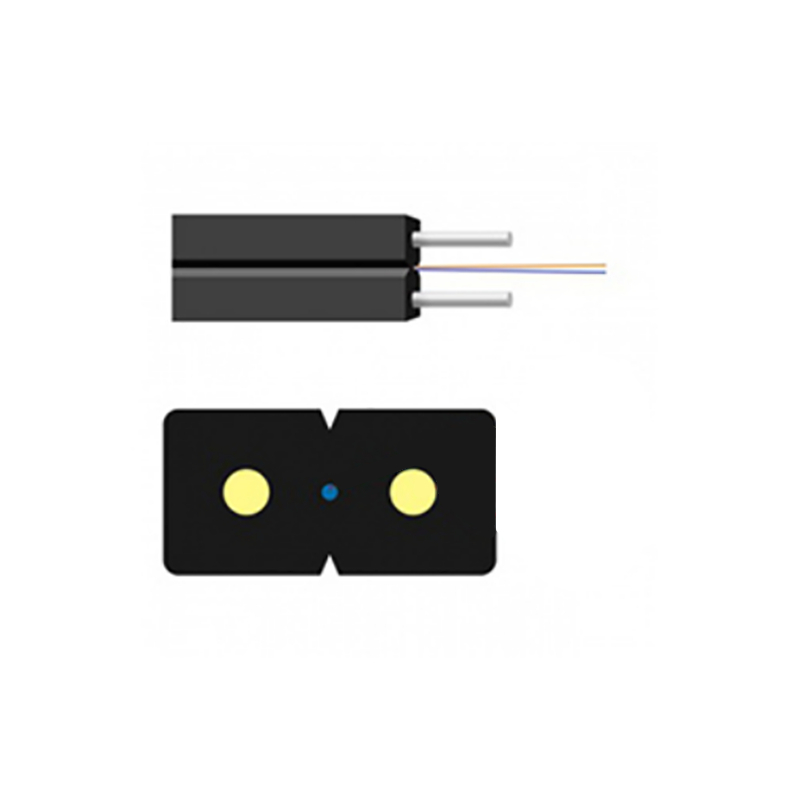

FTTH indoor optical cable puts the optical communication unit in the center. Place two parallel non-metallic reinforcements (FRP or steel wire) on both sides, and finally, extrude a white or colored low-smoke halogen-free flame retardant sheath into a cable.

  • GJXH FTTH Indoor Optical Cable
  • GJXH FTTH Indoor Optical Cable
Product description

Features

Special bending-resistant optical fiber provides greater bandwidth and enhances network transmission characteristics. ​

Two parallel FRP or steel wires have good compression resistance and protect the optical fiber.

Optical cable has simple structure, light weight and strong practicability. ​

Unique groove design, easy to peel off, easy to connect, simplifies installation and maintenance.

Low smoke halogen-free flame retardant sheath, environmentally friendly.

Product Standards

FTTH indoor optical cable Comply with standards: YD/T 1997-2009.

Structural parameters

structure parameters
Indoor Optical Cable structure parameters


Fiber Count

Cable Diametermm

Cable WeightKg/km

Tensile Strength

Long/Short Term   N

Crush Resistance

Long/Short Term  N/100m

Bending Radius

Static/Dynamic  mm

1

2.0×3.0

8

100/200

1000/2200

15D/30D

2

2.0×3.0

8

100/200

1000/2200

15D/30D

4

2.0×3.0

8

100/200

1000/2200

15D/30D

6

2.0×3.5

8.5

100/200

1000/2200

15D/30D

8

2.0*4.0

9

100/200

1000/2200

15D/30D

12

2.0*5.0

9.7

100/200

1000/2200

15D/30D
